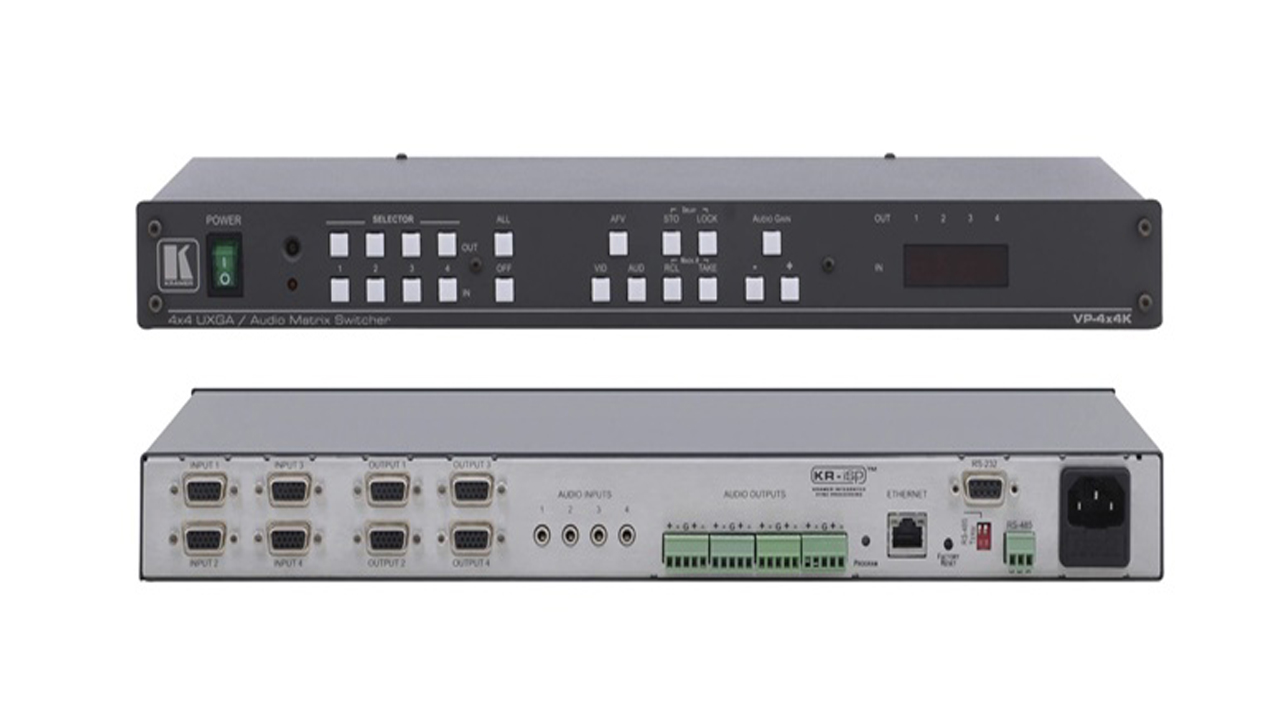

VP-4x4K
VP−4x4K เป็นอุปกรณ์สลับสัญญาณภาพที่มีประสิทธิภาพสูงสำหรับสัญญาณ Computer Graphics Video, และรองรับความละเอียดสูงถึง UXGA, รองรับสัญญาณเสียงแบบ balanced stereo. อุปกรณ์สามารถสลับช่องสัญญาณได้อย่างอิสระ.
INPUTS
4 UXGA on 15–pin HD connectors
4 unbalanced stereo audio signals on 3.5mm mini jacks
OUTPUTS
4 UXGA on 15–pin HD connectors
4 balanced stereo audio signals on 5–pin terminal block connectors
MAX. OUTPUT LEVEL
Video: 2.2Vpp
Audio: >15Vpp
BANDWIDTH (-3DB)
Video: 400MHz
Audio: 19kHz
DIFF. GAIN
0.07%
DIFF. PHASE
0.03Deg
K-FACTOR
<0.05%
S/N RATIO
Video: 73.5dB @5MHz
Audio: 76dB unweighted
CROSSTALK (ALL HOSTILE)
Video: — 48dB @5MHz
Audio: — 54dB @1MHz
COUPLING
Video: DC
Audio: AC
AUDIO THD + NOISE
0.065% @1kHz
AUDIO 2ND HARMONIC
0.002% @1kHz
CONTROLS
Front panel buttons, RS–485, RS–232, IR & Ethernet
INDICATORS
4–character display on the front panel
POWER CONSUMPTION
100–240V AC, 18VA max
INCLUDED ACCESSORIES
Power cord, null–modem adapter, Windows®–based control software, rack "ears"

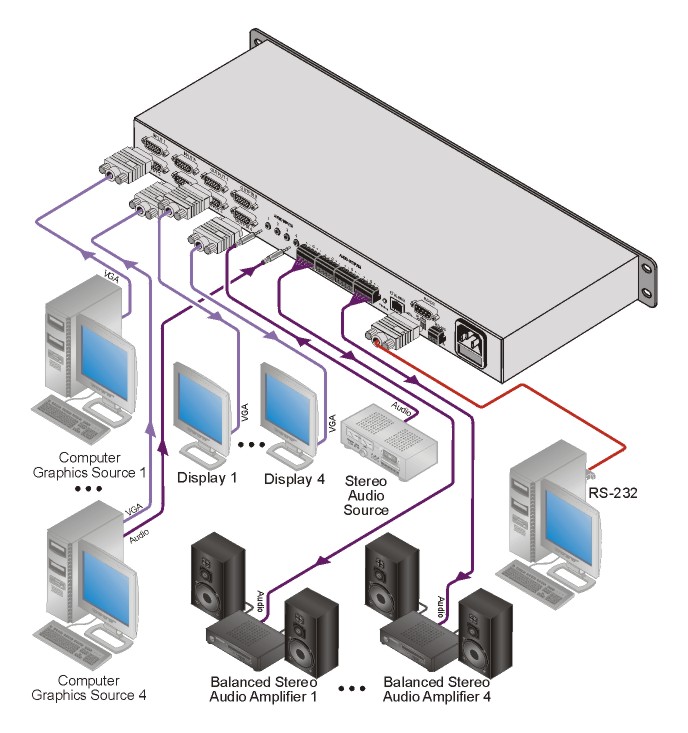

Diagram
Overview
High Bandwidth — 400MHz (–3dB).
HDTV Compatible.
Kr–isp® Advanced Sync Processing — Ensures compatibility with a wide range of computers (even if the sync level is too low) by restoring the sync signal waveform.
Delayed Switching™ — Up to a 3.5s (user selectable) delay for clean switching.
Audio Breakaway Switching.
Memory Locations — Stores multiple switches as presets to be recalled and executed when needed.
ALL/OFF Controls — Sends one input to all outputs, can disconnect all outputs, or turn off individual outputs.
Take Button — Executes multiple switches all at once.
Front Panel Control Lockout.
Active Input Indication™ Reporting — Each input button on the front panel automatically lights when the unit detects a video signal on that input. When an input is selected for switching, the button changes to a different color to indicate it is the active input.
Input and Output Audio Level Control.
Flexible Control Options — Front panel, RS–485, RS–232 (K–Router™ Windows®–based software is included), Ethernet, iPhone® App & IR remote (included).
iPhone Control App Link — VP–4x4K Control App
Worldwide Power Supply — 100–240V AC.
Standard 19” Rack Mount Size — 1U. Rack "ears" included.
