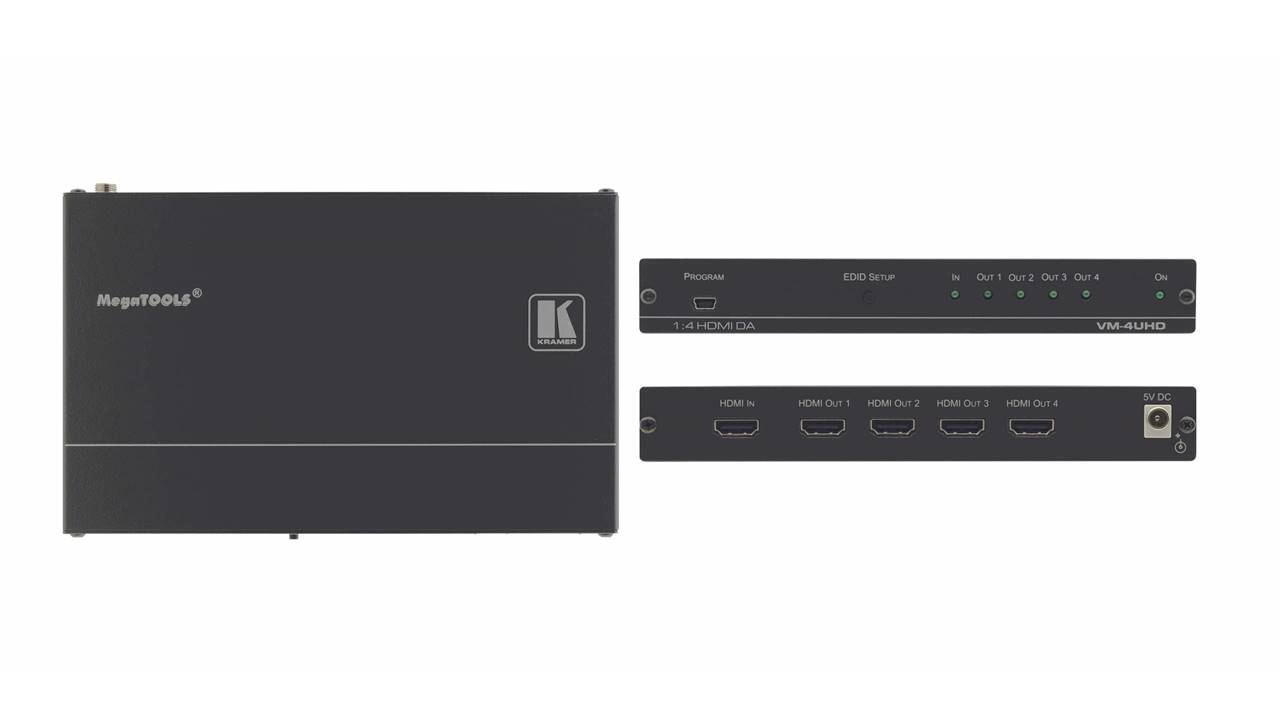

VM-4UHD
VM-4UHD เป็นอุปกรณ์กระจายสัญญาณ HDMI ที่ความละเอียด 4K@60Hz (4:2:0) โดยกระจายสัญญาณจาก 1 Input ไปยัง 4 Output.
INPUT
1 HDMI connector
OUTPUTS
4 HDMI connectors
PORT
1 USB for firmware upgrade
MAX. DATA RATE
10.2Gbps (3.4Gbps per graphic channel)
COMPLIANCE WITH HDMI STANDARD
Supports HDMI and HDCP
CONTROLS
EDID Setup button
INDICATOR LEDS
IN, OUT 1 to 4 LEDs
OPERATING TEMPERATURE
0° to +40°C (32° to 104°F)
STORAGE TEMPERATURE
–40° to +70°C (–40° to 158°F)
HUMIDITY
10% to 90%, RHL non–condensing
POWER CONSUMPTION
5V DC, 1.1A
INCLUDED ACCESSORIES
Power supply

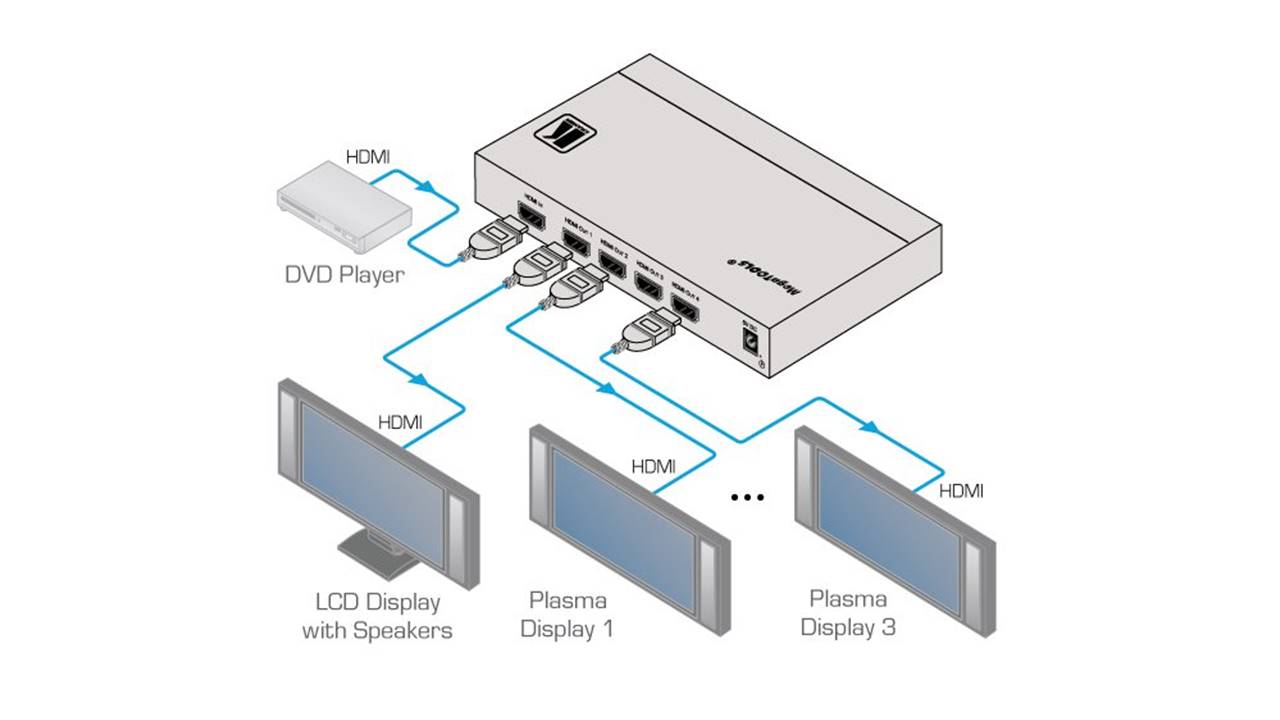

Diagram
Overview
Max. Data Rate — 10.2Gbps (3.4Gbps per graphic channel).
Max. Resolution — 4K@60Hz (4:2:0).
HDMI Signal Transmission — HDMI 2.0 and HDCP 1.4 compliant signal, supporting deep color, x.v.Color™, lip sync, 7.1 PCM, Dolby TrueHD, DTS–HD, CEC (OUT 1 only), 2K, 4K, and 3D.
I–EDIDPro™ Kramer Intelligent EDID Processing™ — An intelligent EDID selection, handling, locking, processing and pass–through algorithm ensures Plug and Play operation for HDMI source and display systems.
Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.
Field Maintenance — Mini–USB connection for simple field firmware upgrade with Kramer K–Upload tool, easy EDID handling with Kramer EDID–Designer tool, status indicators for HDMI input and output connected signals, and power indicator, for ease of maintenance and troubleshooting.
Easy Installation — Compact Mega TOOLS™ fan–less enclosure for over–ceiling mounting, or side–by–side rack mounting.
