iSwitch 2000D-WPT
iSwitch 2000D-WPT
Support 18Gbps video bandwidth, HDCP 2.2, and DP 1.2
Input and output video resolution is up to 4K60 4:4:4
Signal transmission distance can be extended up to 328ft/100m via CAT6/6A/7 cable
Transmit video, analog audio, RS-232, CEC and USB signal over Ethernet

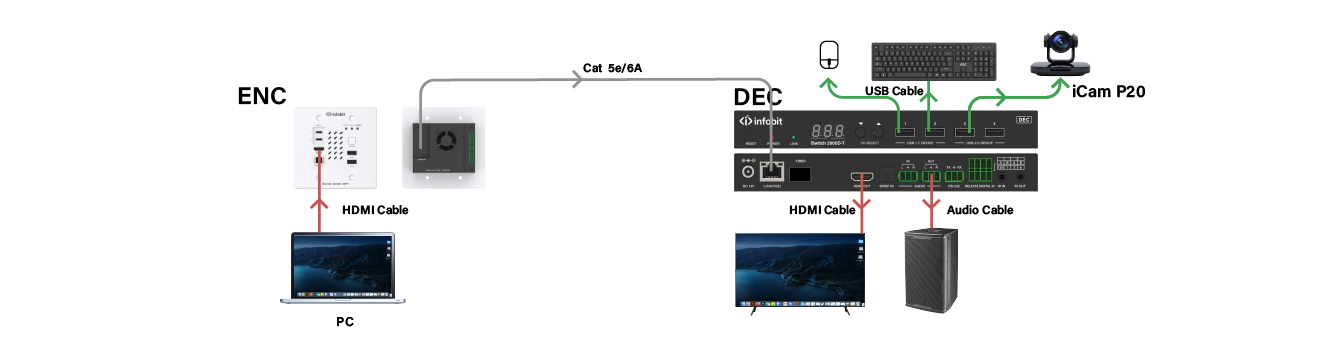

Support USB 2.0 and KVM function

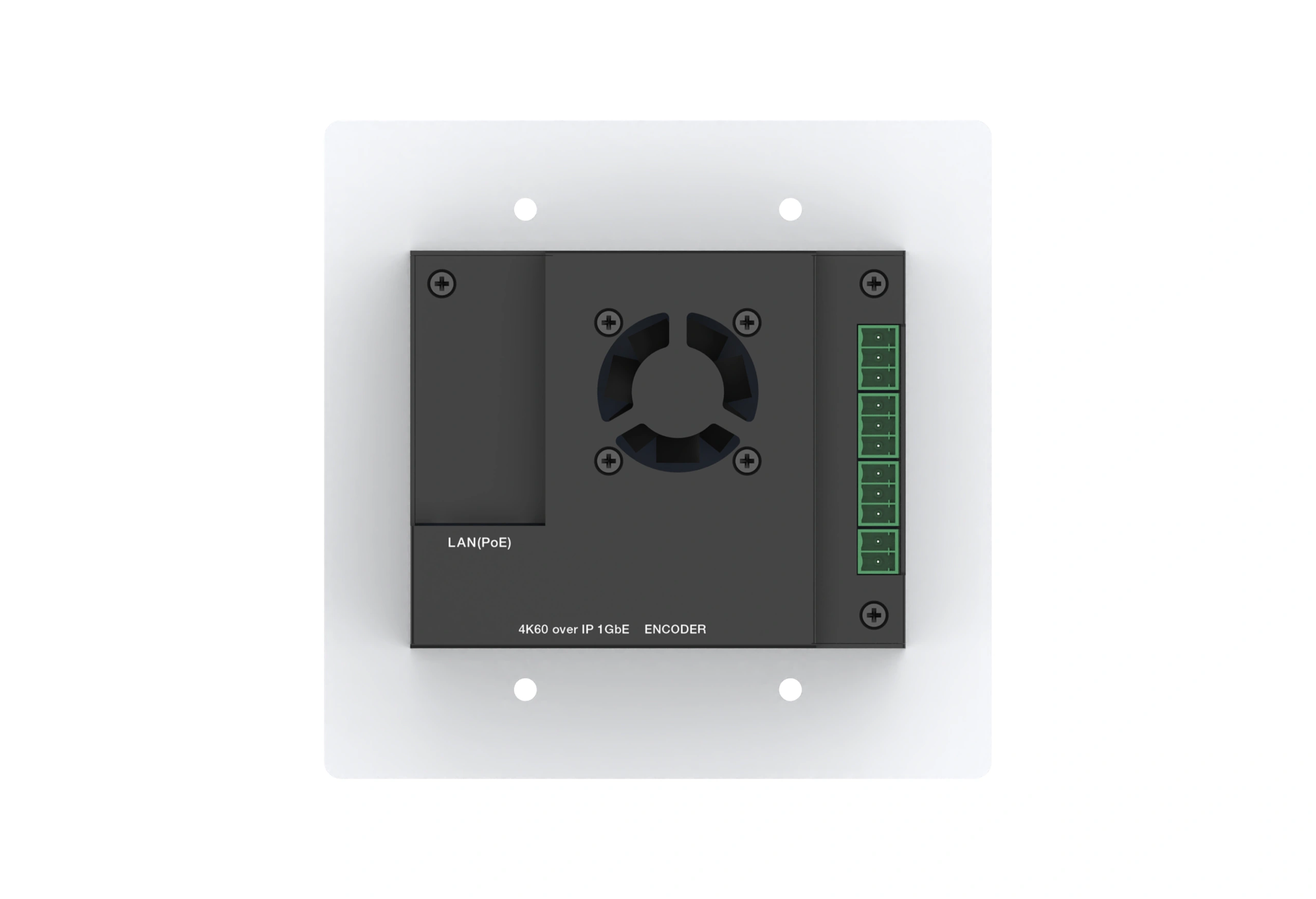

US 2-Gang wall-plate
With HDMI and USB-C dual inputs, supporting auto-switching and manual switching modes
The USB-C 1 port supports video/audio/USB data transmission and power charging.
Audio embedding and de-embedding are supported

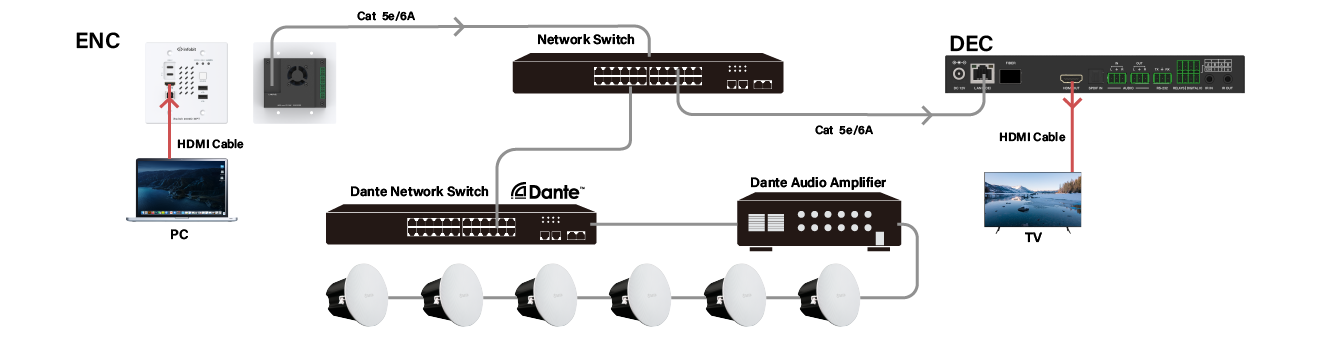

Dante AV-A mode is supported

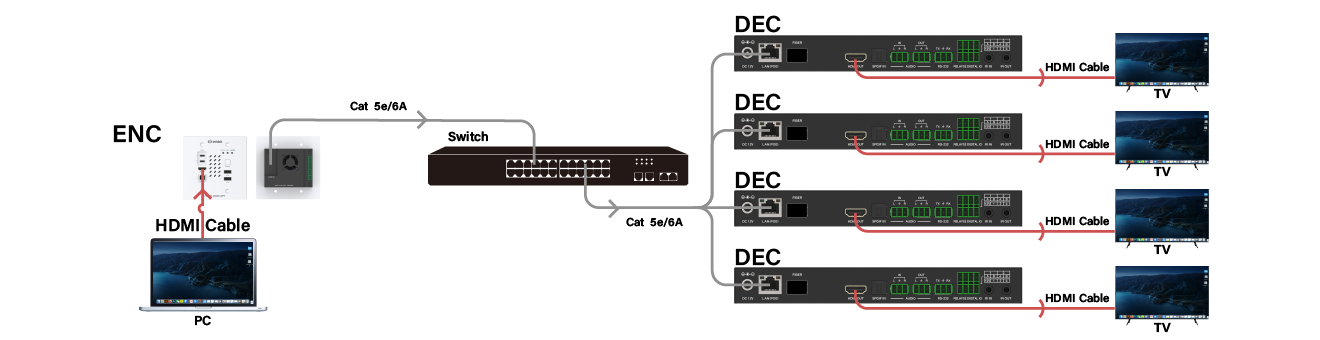

Support unicast and multicast functions

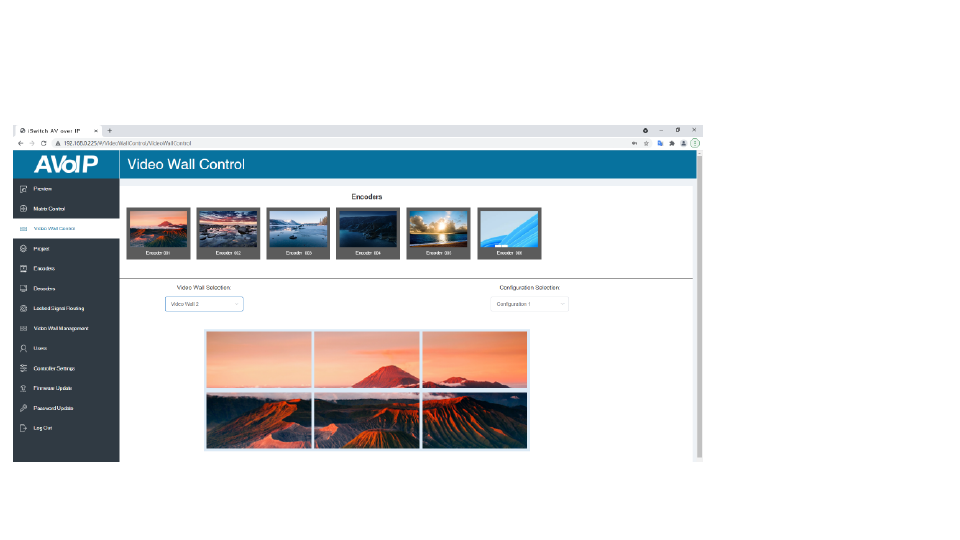

Support point-to-point, video matrix, and video wall functions (video wall supports up to 9×9)
Built-in MJPEG Substream for video real-time preview on portable devices
Support 1G Ethernet Switch, router and hub device transmission
Standard PoE (802.3at PD device) or local 12V power supply
Built-in web page configuration and control, Telnet and SSH as well
Support HDR10, Dolby Vision, HLG bypass
Flexible control via Web GUI/TCP/RS-232 and third-party central control
Works with iSwitch 2000D-R
| Model | iSwitch 2000D-WPT |
| Name | 4K60 JPEG 2000 AV over IP Wallplate Encoder, with Dante |
| HDMI Compliant | HDMI 2.0b |
| HDCP Compliant | HDCP 2.2 |
| Video Bandwidth | 18Gbps |
| USB Bandwidth | 480Mbps |
| Video Compression Standard | JPEG2000 |
| Video Network Bandwidth | 1G |
| Input Video Resolution | Up to 4096×2160 60Hz, more details refer to the user manual. |
| Output Video Resolution | Depends on the optional decoder |
| Color Depth | Input: 8/10/12-bit, 8-bit (4K60Hz 4:4:4) Output: 8-bit |
| Color Space | RGB, YCbCr 4:4:4 / 4:2:2. YUV 4:2:0 |
| Transmission Distance | 100M (CAT6/6A/7) |
| Audio Formats | LPCM 2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, Dolby Atmos, DTS, DTS-96/24, DTS-EX DSD, DTS High Res, DTS-HD Master, DTS:X |
| Input/Output Audio Impedance | >=10k ohms/330 ohms |
| Line Input/Output Level (Maximum) | 1Vrms/1Vrms |
| Frequency Response | (+0.5dB, -1dB) 20Hz ~ 20kHz |
| Audio Output Sync Delay | TBD |
| Audio S/N Ratio | >90dB@ HDMI 0dB, 1kHz A-weighted |
| Audio THD+N | <0.05%@ HDMI 0dB, 1KHz |
| ESD Protection | IEC 61000-4-2: ±15kV (Air-gap discharge) & ±8kV (Contact discharge) |
| Encoder | Input: 1x HDMI IN [HDMI Type A, 19-pin female] 2x USB-C IN [USB Type C, 24-pin female] 1x AUDIO IN [3pin-3.5mm Phoenix connector] Output:1x AUDIO OUT [3pin-3.5mm Phoenix connector] Control: 1x RS-232 [3pin-3.5mm Phoenix connector] 1x LAN (PoE) [RJ45 jack] 1x USB 2.0 HOST [USB Type B, 4-pin female] 2x USB 2.0 DEVICE [USB Type-A, 4-pin female] |
| Decoder | Works with iSwitch 2000D-R |
| Housing | Aluminum panel + Iron case |
| Color | White panel + Black case |
| Dimensions | 115.9mm [W] x 114.3mm [H] x 44.25mm [D] |
| Weight | 350g |
| Power Supply | Input: AC100 – 240V 50/60Hz, Output: DC 12V/2.5A (US/EU standards, CE/FCC/UL certified) |
| Power Consumption | 12W (Max.) |
| Operating Temperature | 32 – 104°F / 0 – 40°C |
| Storage Temperature | -4 – 140°F / -20 – 60°C |
| Operating Humidity | 20% – 80% (relative humidity, no condensing) |
| Storage Humidity |
10% – 90% (relative humidity, no condensing) |
